Infrared heating for floors, walls and ceilings
You know the feeling: the first bright day of spring, when the sun on your face warms you right through even though the air is still cool. Infrared heating works the same way. It warms you and the surfaces around you directly, so every corner of the room feels gently, evenly warm, with no stuffy air and nothing on the walls. If you have lived with heating that never quite gets there, this is the difference you notice on the first cold morning.

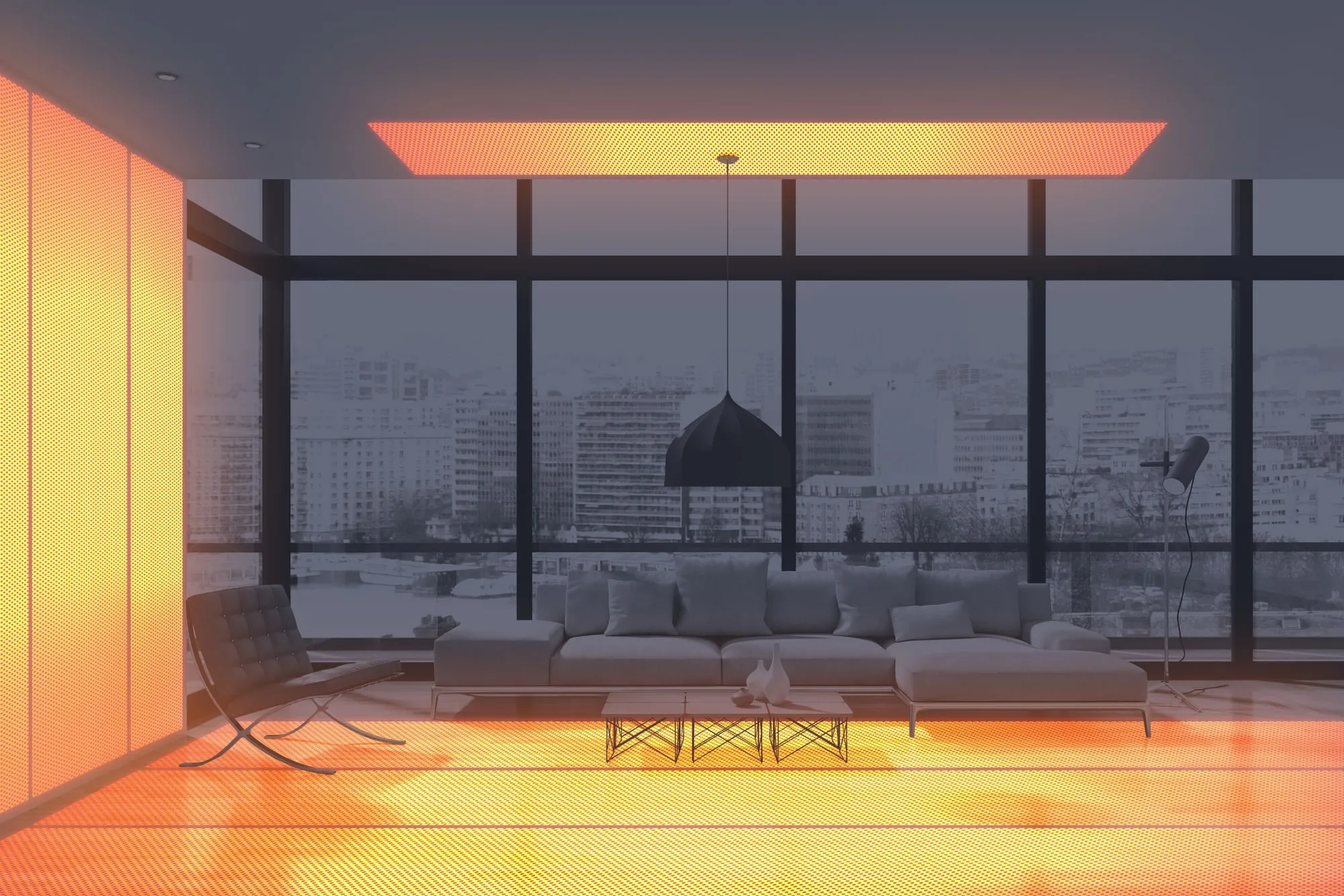

One element, three surfaces
The same carbon-fibre element goes under the floor, behind the plaster, or into the ceiling. Which one is a question of what suits you and the room best, not of what the system can do. We work with you to identify the best solution for your space.
Large open spaces where warm feet are wanted, rooms with ceilings above three metres, and buildings heated around the clock. The largest emitting area at the lowest surface temperature.
Rooms with ceilings under three metres, spaces heated intermittently, and anywhere comfort matters most. It also holds the coldest surface above dew point.
PowerBoard 250 where a suspended plasterboard ceiling is going in. PowerBoard 500 and 750 for open offices and home renovations that need fast mounting with no construction work.
Convective vs radiant heating
A radiator, a heat pump or a warm-air unit warms air, then waits for that air to carry the heat to you. Hot air rises, stratifies at the ceiling and leaves the moment a door opens. Radiant heating skips the carrier: energy travels as far-infrared, is absorbed by surfaces and people, and warms them directly. It is the most natural way to be warm, the same mechanism as the sun, and because nothing is wasted heating air you will never occupy, it is both more comfortable and more energy efficient than any system that moves heat around on air or water.
The whole floor, wall or ceiling emits far-infrared at a low surface temperature. Energy is absorbed by you and by the room's surfaces directly, so comfort holds when a door opens and the air is never heated hard enough to dry it out. Nothing is ducted or vented, and floor, wall and PowerBoard 250 systems are invisible once finished.
The wavelength
Our surfaces emit long-wave infrared at 6 to 15 µm, the same band your own body radiates at. It is absorbed at the skin rather than passing into it, it cannot be seen, and it warms the room's surfaces as readily as it warms you.
The physics →What we supply
From heat-loss calculation to commissioning records. Your trades install it. Our engineering stands behind it.
Room-by-room heat loss, element layout drawings and load schedules, prepared from your plans.
Heaters made to length and pre-cabled to the drawing, labelled per room and shipped as a kit with connectors and thermostats.
Heaters laid out to the design plan by your own trades and cabled together, with remote support on the first projects.

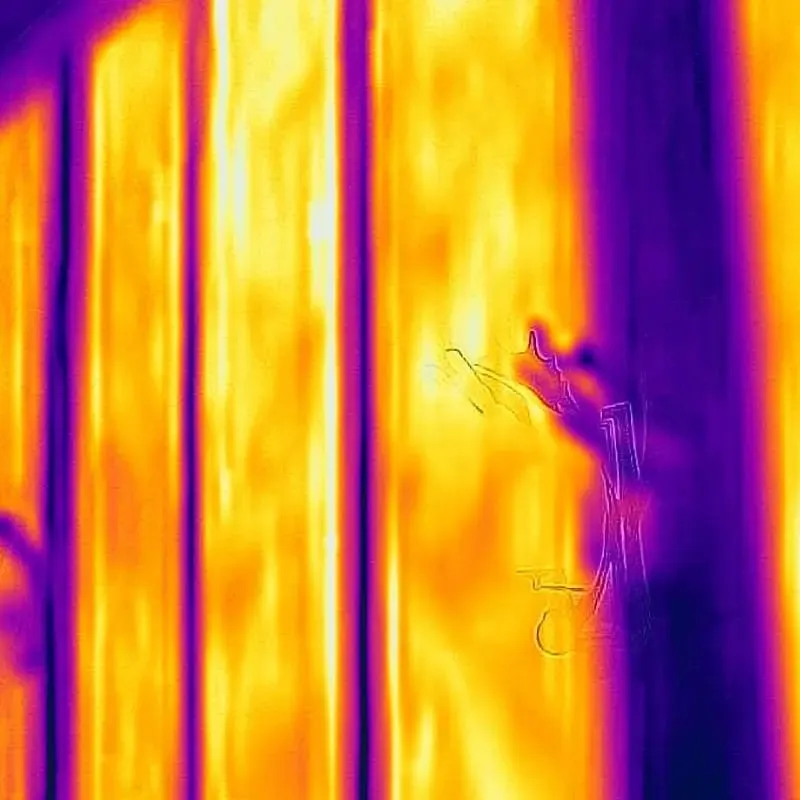

Resistance and insulation tests, thermal imaging of every zone, and commissioning records for handover.
Send us plans and a construction spec. We return a room-by-room heat loss calculation, element layout drawings, circuit and load schedules, and the electrical design your contractor builds from.
Carbon-fibre elements prepared and pre-cabled to your room design, from 600 to 900 mm wide and in variable lengths depending on the product type. No additional wiring and no manipulation of the films is required on site.
Thermostats, sensors and zone logic specified with the system, so a fast-responding surface is actually run fast. Low-voltage systems run on the LaminaHeat Multi Zone Power Supply: up to five independently controlled zones per unit, up to 6000 W, 110–240 V in and 12–48 V out, with a PV or battery DC input.
Method statements for your trades, a pre-cover inspection checklist, remote support during the install, and commissioning records for handover. Your electrician and your plasterer fit it.

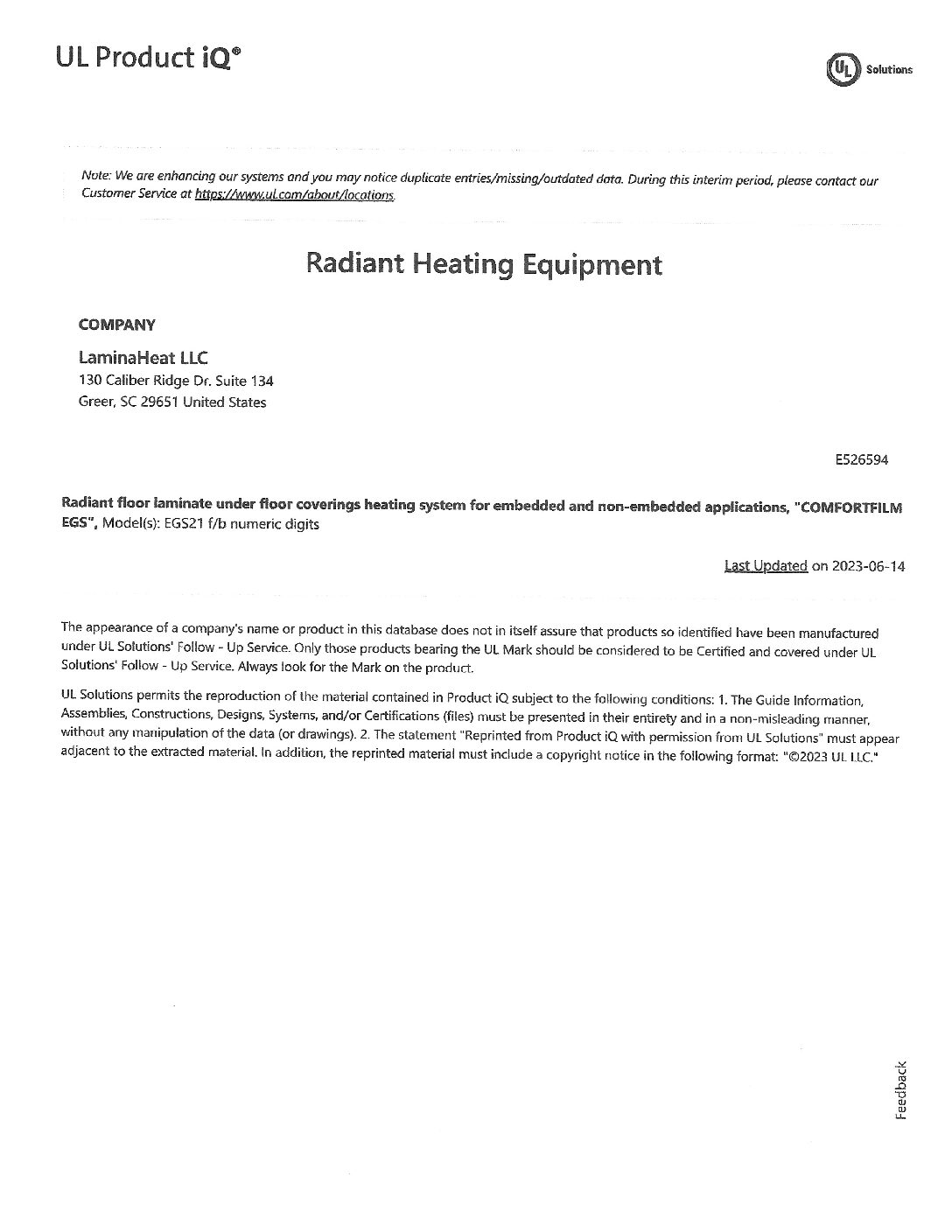

CE and UKCA marked across the range, BEAB tested to IEC 60335-1, with SafeTech EGS additionally UL listed. ISO 9001 manufacturing, a 10-year product warranty and a tested 20+ year service life.
The material
Carbon fibre is what lets a heating element be full-surface, from 0.4 to 1.4 mm thick, fully grounded and safe enough to bury in a wall for the life of the building. It is why we can size the element to the room instead of picking one from a shelf.
Material and SafeTech testing →
The element disappears into plaster, adhesive or screed.
Tensile strength several times that of steel at a fifth of the density.
Carbon fibre tolerates temperatures far beyond anything a building sees.
Zero moisture absorption. Tested submerged as part of SafeTech.
A grounded full-surface element, not a wire on a spacing.
The 48 V system connects straight to solar or a battery, with no inverter in between.
Built and running
A three-storey house hand-built in 1950 and heated by a wood-fired oven ever since. ComfortScrim went into the walls of the 36 m² living and dining room, 15.6 linear metres of 600 mm film on a 3200 VA supply, and was plastered straight over.
25 working hours · two daysPowerBoard panels surface-mounted to the existing ceilings of an occupied English home by PoweRad Ltd, our UK partner. No construction work, no floors lifted and no walls disturbed.
Surface-mounted panels · installed by PoweRad Ltd
SafeTech EGS heaters set out wall to wall across a large office floor and daisy-chained with plug-and-play connectors before the finish went down. No plant room, no manifolds.
Plug-and-play heaters“We do not need hot air to feel comfortable.”
Certified and tested
The element range
If you are specifying rather than buying a system, this is the range. We will still do the layout and the load schedule.
| Element | Voltage | Surfaces | Embedded in | Specified when |
|---|---|---|---|---|
| ComfortScrim | 12–48 V DC | Floor, wall, ceiling | Plasters, adhesives, levelling compounds | Invisible comfort heat is wanted in walls and ceilings, and ceilings are under three metres |
| SafeTech EGS | 110–240 V AC | Floor | Under floating, dry and embedded floor finishes | Warm feet are wanted, or ceilings exceed three metres |
| PowerBoard 250 | 110–240 V AC | Ceiling | Plasterboard grid, 1200 × 600 mm | A suspended plasterboard ceiling is being installed |
| PowerBoard 500 / 750 | 110–240 V AC | Ceiling, surface-mounted | Nothing, mounted panel | No large construction is allowed and fast mounting is required, with ceilings under 3.5 metres |
From the blog
How infrared heating works: a thin element in the wall, ceiling or floor warms you and the room’s surfaces directly, instead of heating the air first. Temperatures, heat-up times and what it means for your bills.
Read the article →
Is infrared heating cost effective? Real running costs in euros for a whole home and room by room, how it stacks up against gas and heat pumps, and when it's the cheaper choice.
Read the article →Are infrared heaters safe? Radiation, surface temperatures, fire, water, children and pets: what makes an infrared heating system safe, with the tests and certifications behind ours.
Read the article →

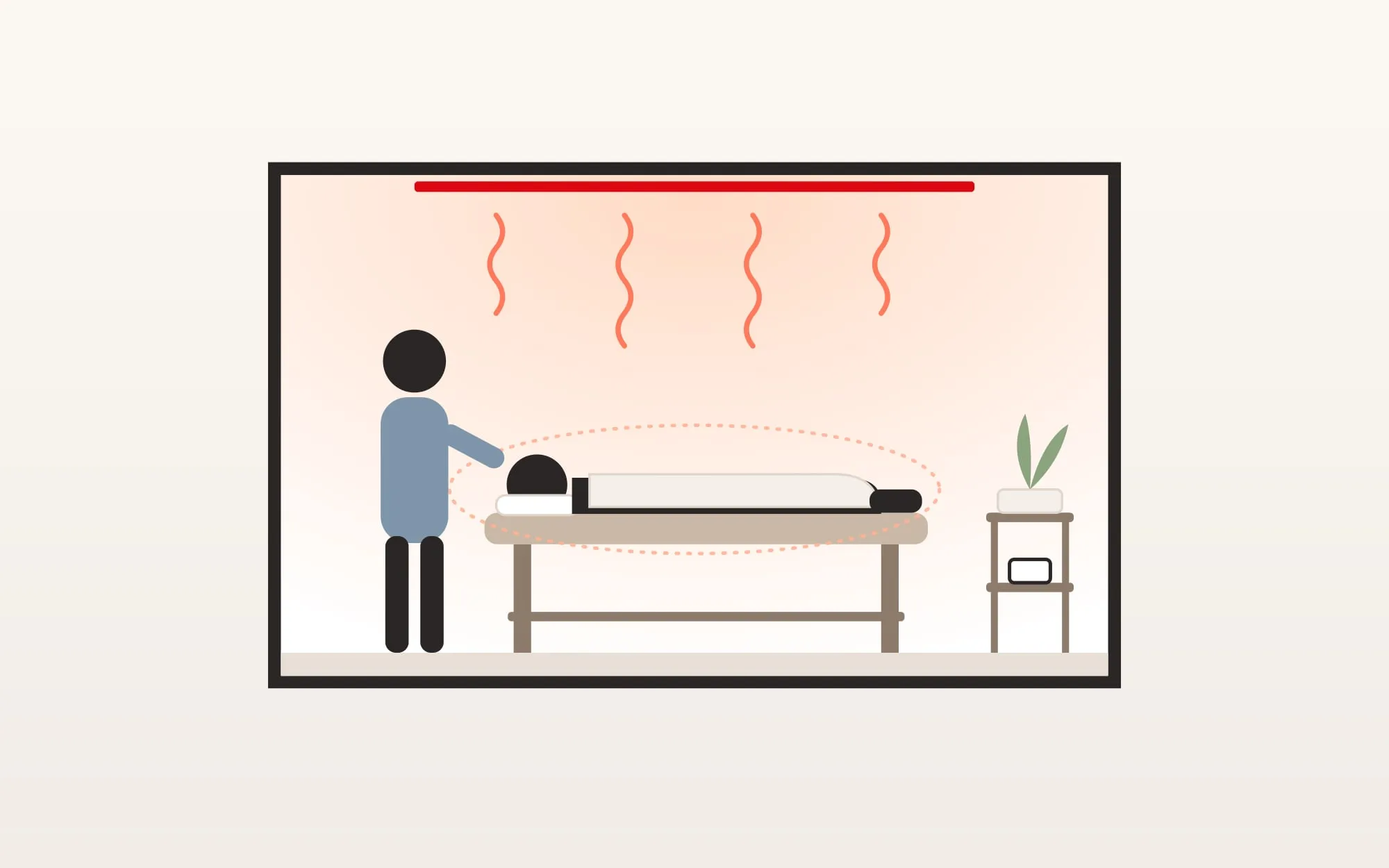

Why infrared heating suits dental practices, beauty and nail salons, massage, physio and aesthetics clinics: warm clients and comfortable staff in the same room, no fans blowing dust, silent, easy to clean and warm in time for the first appointment.
Read the article →

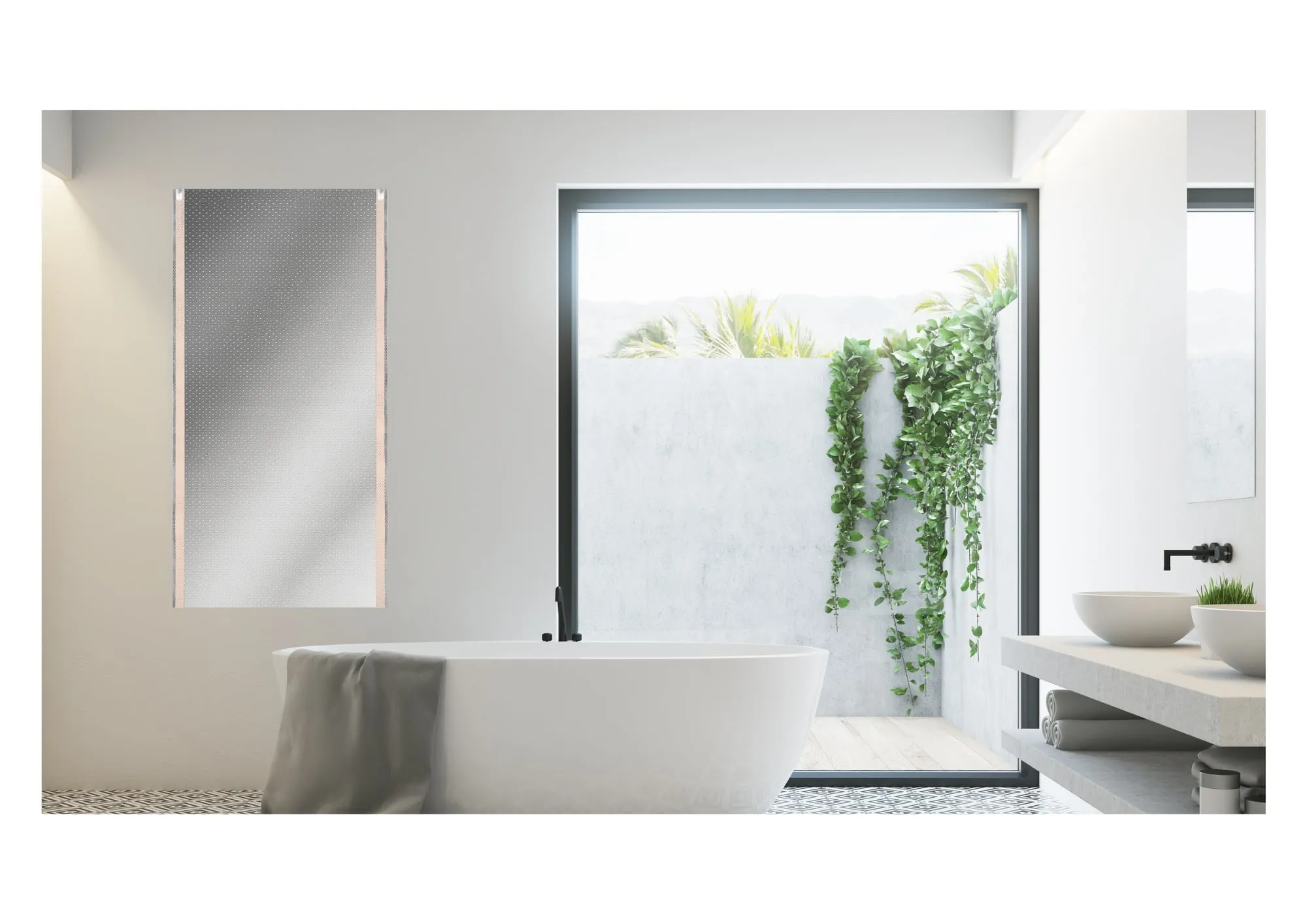

Infrared heating for bathrooms, built into the wall, floor and ceiling. How it keeps towels dry without a rail, why low voltage makes it safe in a wet room, what it costs to run, and how the layers go together.
Read the article →

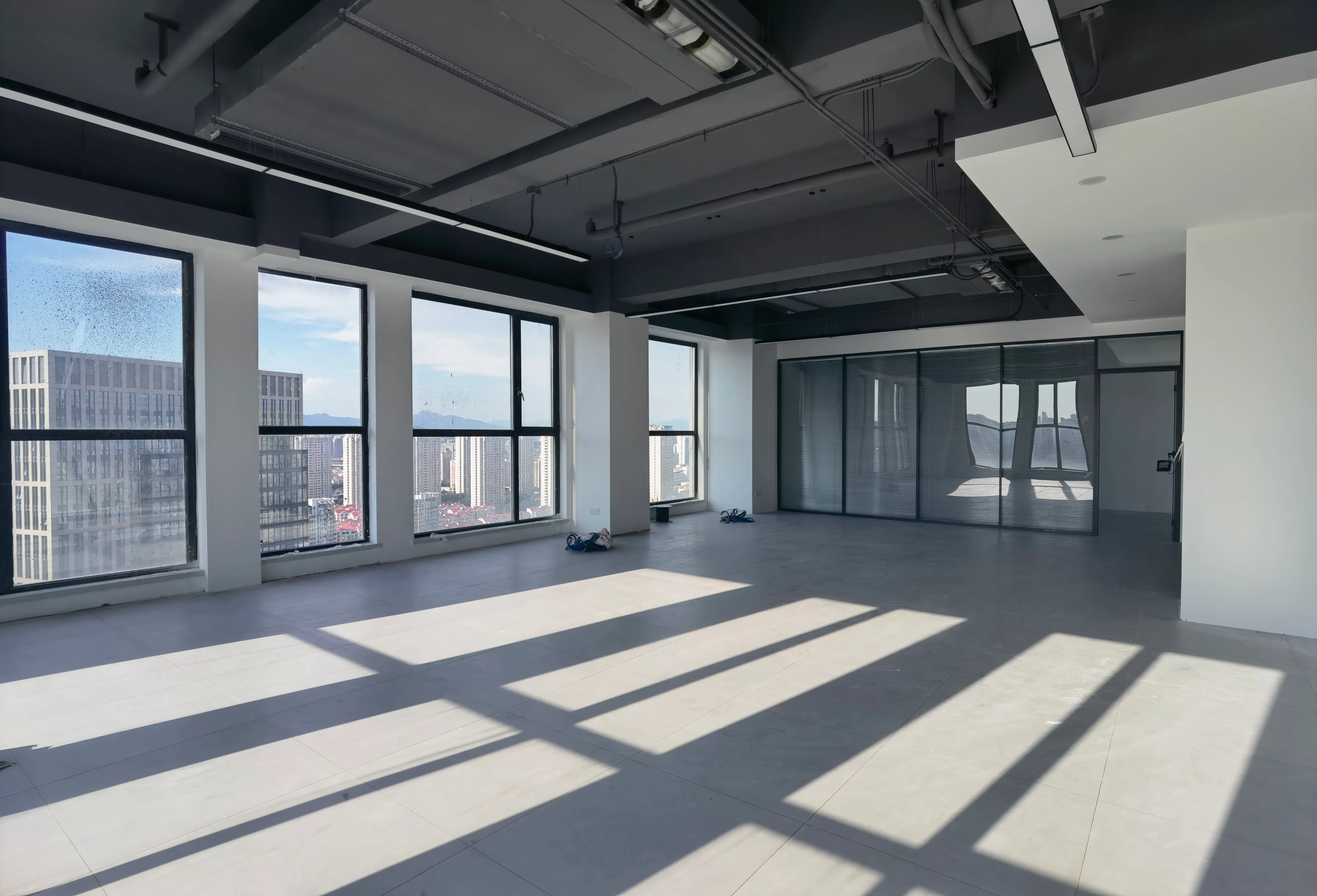

A 120 m² open-plan office in Qingdao heated with SafeTech EGS film under tiles: one-day install, thermal-camera commissioning, 13.2 kW on one thermostat.
Read the article →Which adhesive to specify over an electric underfloor heating element: deformability class, bed thickness, coverage and the cure before first power-on.
Read the article →ComfortScrim at 12–48 V and SafeTech EGS at mains voltage: build-up, output, where each belongs, the trade-offs, and whether a heated floor is safe.
Read the article →
Dry lips, itchy skin and static shocks in winter. Heating does not remove moisture from air, but it does lower relative humidity, and some heaters make it far worse than others.
Read the article →
Practical ways to stay warm this winter without moving the thermostat: sealing draughts, warming surfaces, dressing for it, and heating the room you are in rather than the whole house.
Read the article →
Office temperature measurably affects error rates, cognitive performance and output. Where the productive band sits, why one setting never suits a whole floor, and what to do instead.
Read the article →
A living room, a bedroom and a bathroom each want something different from a heating system. Which surface to heat, which element to use, and the practical constraints in each room.
Read the article →
Classrooms are occupied in bursts, hold thirty heat-generating bodies, and are refurbished in six-week windows. Why radiant heating suits school buildings, and what it does for learning.
Read the article →
A step-by-step method for working out how much infrared heating a room needs and how many panels that means: heat load bands, a worked example, and where to place the panels.
Read the article →Infrared heating in hospitals, care homes and clinics: no stored water, no fans, nothing to service in occupied rooms, safe surface temperatures and room-by-room control. Where it fits, where it doesn’t, and the certifications behind it.
Read the article →
The three classes of infrared panel, how to size and place them, what to check before buying, and where an embedded system beats a surface-mounted one.
Read the article →
An even-handed look at infrared heating. What it genuinely does better than a radiator or a heat pump, what it does worse, and the situations where you should choose something else.
Read the article →
A low-voltage DC heating element can run straight off solar panels or a battery with no inverter in the path. Why infrared and PV pair unusually well, and what it takes to do it properly.
Read the article →
Heated walls store heat and warm the lower half of a tall room; heated ceilings distribute evenly and free up wall space. How to pick between them, and what each costs to install and run.
Read the article →

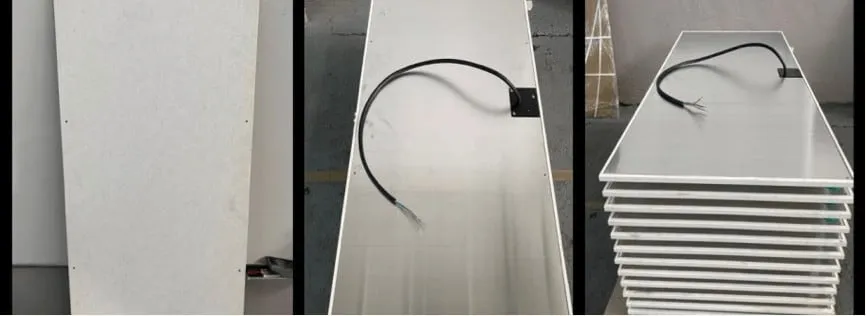

Most infrared panels heat with a resistive wire and hang on the wall at 90 to 110 °C. PowerBoard uses a full-surface carbon-fibre film, goes into the ceiling, and runs cooler. Five differences that matter.
Read the article →
PowerBoard infrared ceiling panels install in around twelve minutes each, fitting and electrical connection included. What that does to a construction programme against radiators or underfloor heating.
Read the article →
Infrared heats surfaces rather than air, responds in minutes and zones room by room. Where the saving genuinely comes from, and how to work out the kilowatt hours for your own building.
Read the article →
Our mains-voltage carbon-fibre heating film is certified to UL 2683, the standard for heating elements and assemblies. What the certification tests, and why it is harder for a full-surface element.
Read the article →
The PowerBoard ceiling heating system holds Intertek BEAB certification to IEC 60335-1, the international safety standard for household electrical appliances. What that certification actually covers.
Read the article →
Warm surfaces do not reach dew point, so they do not condense. How radiant heating keeps a house inside the 40 to 60% humidity band without a dehumidifier, and why that matters for mould and comfort.
Read the article →
Boilers and heat pumps make heat a long way from where it is used, and every metre of that journey costs energy. Why generating heat millimetres from the surface changes the arithmetic.
Read the article →
A suit and a summer dress can differ by six degrees of comfort. What clo values are, why desert and arctic clothing look the way they do, and what it means for setting an office temperature.
Read the article →
Metabolism explains most of the office thermostat war. How basal metabolic rate, activity and body composition change the heat a person produces, and why one set temperature can never suit everyone.
Read the article →
Far infrared is non-ionising radiation at the long, low-energy end of the spectrum. Where it sits relative to UV and x-rays, what our films actually emit, and why surface temperature is the real safety question.
Read the article →
Too little air movement and you get mould and stale air; too much and you feel cold. Where the comfortable range sits, why draughts cost so much energy, and how heating choice changes both.
Read the article →
Carbon fibre lets a heating element be a fraction of a millimetre thick, full-surface, perforable, non-combustible and unaffected by twenty years of heating cycles. Why the material decides the product.
Read the article →

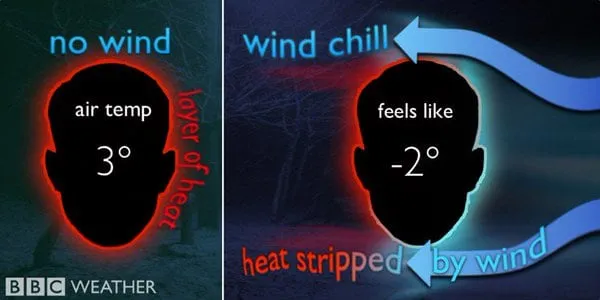

Air speed is a multiplier on heat exchange, and the same breeze can be a comfort or a danger depending on the temperature. Why wind chill does not actually make the air colder.
Read the article →

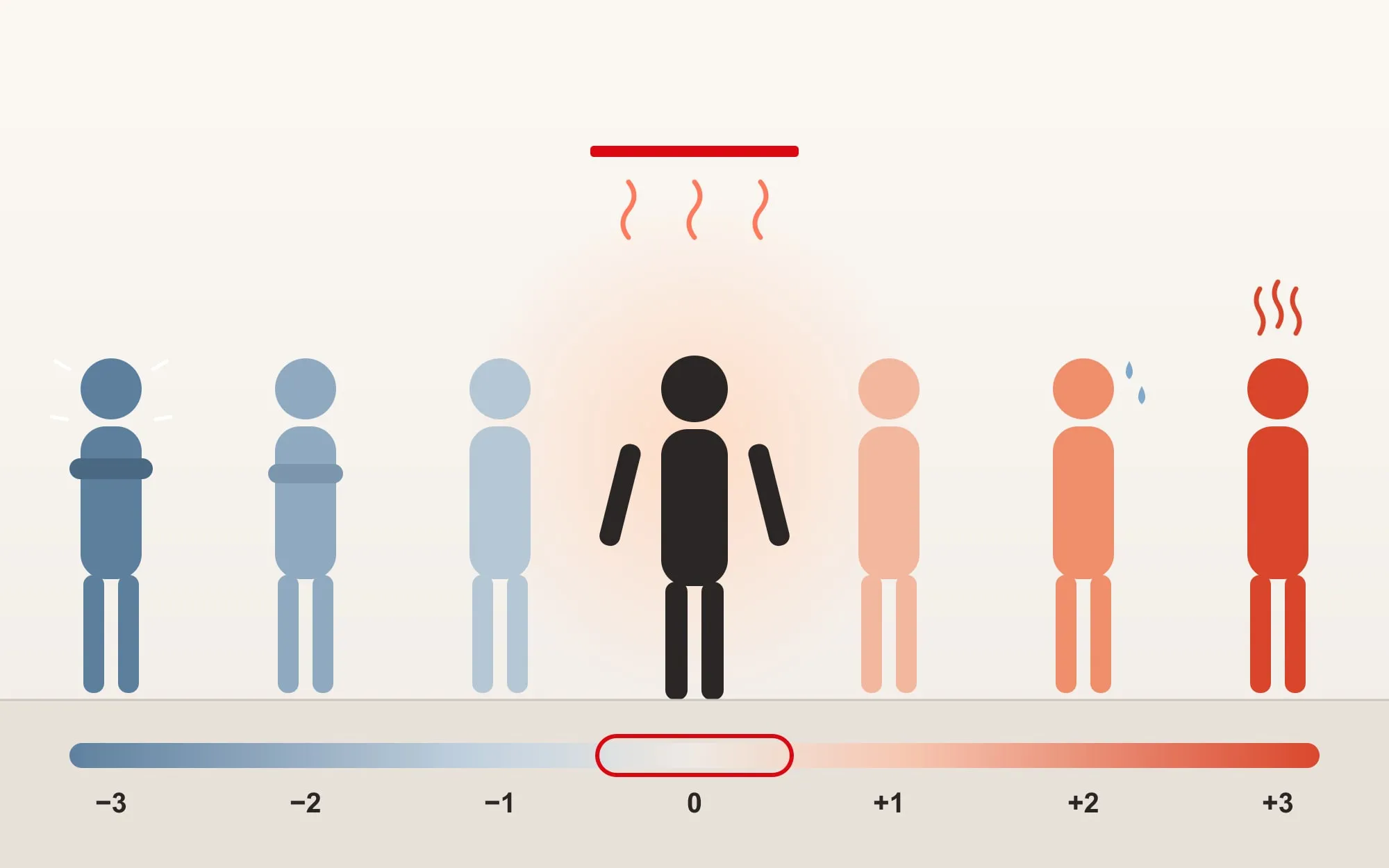

What thermal comfort really is: thermal neutrality, the six factors in ASHRAE 55, PMV and PPD, operative and mean radiant temperature, and why warm surfaces make a room feel warmer than the thermostat says.
